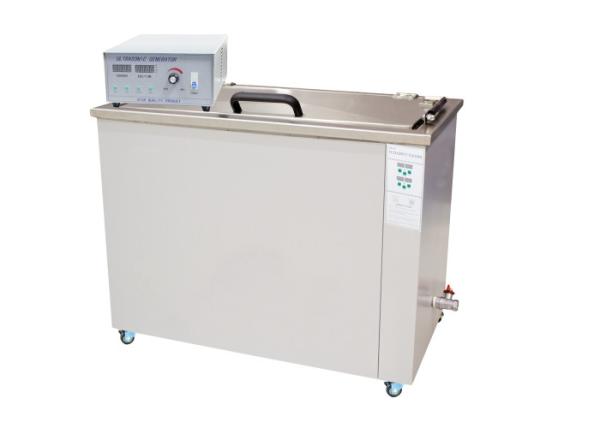

Industrial Ultrasonic Cleaner with Oil Filtration System with Pump
Recycle Use Detergent
Specifications of LS-7201F
| Model | LS-7201F |
| Tank size | 1000x600x600mm |
| Unit Size | 1180x780x900mm |
| Ultrasonic power | 3600W |
| Heating power | 9000W |
| Timer | 1~99hours |
| Temperature | 20~80C adjust |
| Material | SUS304 / SUS316L |
| Voltage | AC220V/AC380V 3phase |
| Feature | with Oil filtration system |
Remark: Any capacity is available from our factory. Tank size can
be design based on your requriement.
Features:
1. Oil filtration system can be use to recycle chemical and prevent
secondary pollution.
2. No manual labour required. An operator is not required when the
machine is working.
3. Short wash process leading to reduced time spent in cleaning.
4. No abrasion of precise edges and surfaces gives longer working
life life
5. Suitable for objects with different size
6. Machinery is simple and easy to use
7. Save labor cost.
8. Tank size and function can be design based on customer
requirement.
9. OEM/ ODM accept.
LS S-series products:
| Model No. | Capacity(L) | Tank Size(L*W*H MM) | Unit Size(L*W*H MM) | Package Size(mm) | Ultrasonic Power(W) | Heating Power(W) | Frequency(KHz) | Transducer(PCS) | Timer(Min) | Temp.(℃) | G.W.(KG) | Voltage |
| LS-1201S | 36 | 400*300*300 | 580*480*650 | 790*560*820 | 240~600 | 1500 | 28/40 | 12 | 0~99 | 20~95 | 50 | AC110V/AC220V, 1phase |
| LS-1801S | 61 | 500*350*350 | 680*530*700 | 890*610*870 | 360~900 | 3000 | 28/40 | 18 | 0~999 | 20~95 | 60 | AC110V/AC220V, 1phase |
| LS-2401S | 88 | 550*400*400 | 730*580*700 | 940*660*870 | 480~1200 | 3000 | 28/40 | 24 | 0~999 | 20~95 | 70 | AC110V/AC220V, 1phase |
| LS-3001S | 96 | 600*450*400 | 780*630*700 | 990*710*870 | 600~1500 | 4000 | 28/40 | 30 | 0~999 | 20~95 | 73 | AC110V/AC220V, 1phase |
| LS-3601S | 135 | 600*500*450 | 780*680*750 | 990*760*920 | 0~1800 | 4500 | 28/40 | 36 | 0~999 | 20~95 | 118 | AC220V/AC380V, 3phase |
| LS-4801S | 175 | 700*500*500 | 880*680*800 | 1090*760*970 | 0~2400 | 6000 | 28/40 | 48 | 0~999 | 20~95 | 152 | AC220V/AC380V, 3phase |
| LS-6001S | 264 | 800*600*550 | 980*780*850 | 1190*860*980 | 0~3000 | 6000 | 28/40 | 60 | 0~999 | 20~95 | 195 | AC220V/AC380V, 3phase |
| LS-7201S | 360 | 1000*600*600 | 1180*780*900 | 1390*860*1100 | 0~3600 | 9000 | 28/40 | 72 | 0~999 | 20~95 | 280 | AC220V/AC380V, 3phase |
Any capacity is available from us. Tank size can be customized
based on your requirement.
FAQ:
Q: How often should I change the cleaning fluid in my tank?
A: Changed whenever it becomes visibly too contaminated, or when
the cleaning process is not as effective.
Q: Why do I need to use a basket?
A: Basket would help to load objects together, and get better
cleaning effect.
Q.: Why require a special cleaning solution?
A.: Dirt adhere to the parts ... if it was not, it would just fall
on them! Purpose of the solution is to break the link between the
products and their soils. Water alone has no cleaning properties.
The original purpose of the ultrasonic (cavitation) - a solution to
help do the work. Ultrasonic cleaning solution contains various
ingredients designed to optimize the ultrasonic cleaning process.
For example, increased cavitation levels as a result of reducing
the surface tension of the liquid. Ultrasonic cleaning solution
contains a good wetting agent or surfactant.
